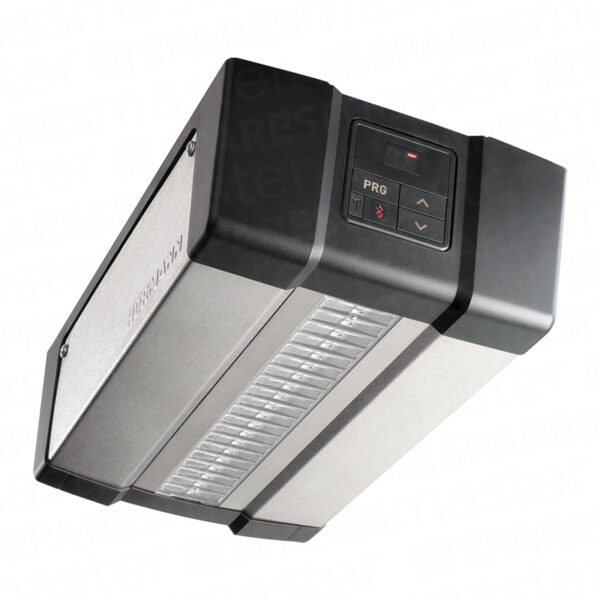

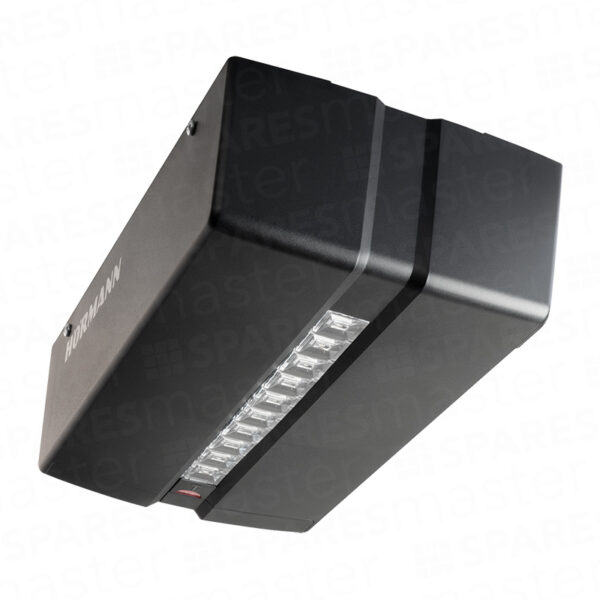

DescriptionGarage Door Operator – SupraMatic E BiSecur – NEW Series 4 (Head Only) The latest generation of Hörmann garage door operators now feature the new Hörmann integrated Bluetooth receiver. The SupraMatic garage door operators feature the same proven Hörmann technology as all Hörmann premium operators. Some of the NEW series 4 operator features include: Energy-efficient LED lighting for bright, even garage illumination Low power consumption of less than 1 watt in stand-by mode Integrated Bluetooth receiver (can be turned on and off) for controlling the operator using the BlueSecur app on a smartphone Up to 75% faster door opening in comparison to ProMatic series 3 New 3rd opening height for “Ventilation” setting HCP interface to connect accessories or external SmartHome systems SupraMatic E Pull and push force: 650N Peak force: 800N Opening speed: max. 25 cm/s ¹ Door width: up to 5500 mm (max. 13.75 m² door surface) 1) Depending on door type, door leaf weight and door size Downloads Installation Instructions Reviews Additional Technical InformationGarage door operator for domestic use – not suitable for commercial use! For dry areas only. Product Description: Door cycles (Open / Close) Per day / per hour 25 / 10 Doors with wicket door / timber doors Yes / Yes Max. door width 5500mm Max. door leaf surface 13.75m² Operator Details: Motor 24 V DC gear drive Mains voltage 230 V – 240 V AC, 50 / 60 Hz Power input 0.2 kW Pull and push force 650 N Peak force 800 N Door travel speed ¹ max. 25 cm/s ¹ for travel in the OPEN direction max. 14 cm/s ¹ for travel in the CLOSE direction Standby < 1 watt Housing Stainless steel and plastic, galvanized steel base plate Temperature range -20°C to 60°C Protection category Only for dry rooms Control Electronics: Display Double 7-segment display Operation and programming Control element with Open / Close / PRG buttons Impulse control Yes Adjustable power limit Yes Adjustable soft start and soft stop Yes Adjustable belt relief Yes Adjustable operator light / partial opening / ventilation position Yes Adjustable automatic timer 5 – 300 sec. Adjustable automatic timer partial opening 5 – 240 min. Adjustable / pre-set operator light 30 – 600 sec. / 60 sec. High speed opening function Yes Equipment: Hand transmitter 868MHz 2 x 4-button hand transmitter HSE 4 BS Textured surface with chrome caps Integrated receiver 868MHz Bi-directional 5-channel receiver BS Integrated Bluetooth® receiver 2.4GHz Yes LED lighting 20 LED Connection for photocell / closing edge safety device Yes Connection of external control elements Yes Connection for emergency battery Yes Quick release operated from the inside Yes Connecting lead with British 13amp 3-PIN plug Yes Anti-lift kit for break-in resistance Yes Universal installation bracket for up-and-over doors and sectional doors Yes Supplied with full instructions in English. Operator boom FS 10 (at additional cost): Self-supporting steel boom with polyester/polyamide toothed belt Maintenance-free toothed belt Plastic slide carriage and automatic belt tensioner 1-piece, completely pre-assembled Note: Installation of photocell is required if automatic timer is activated or impulse control without view of the door. 1) Depending on door type, door leaf weight and door size How it worksHow to video guide for the SupraMatic 4
